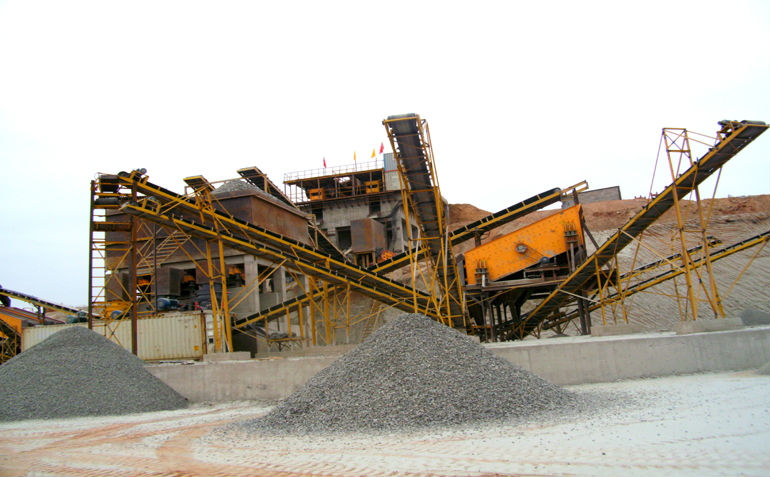

In order to monitor crusher performance, CANTY provides Industrial SolidSizer or 3D Rocksizer image analysis systems, which determine if the mining aggregates outputted from the crusher are the correct size and shape. The systems can be run at line through the use of a sweep sampler, or offline as laboratory instruments. In order to know the quantity produced from the crusher, it is important to have an accurate volume measurement. Traditionally, volume belt scales are used, but there can be significant time spent on maintenance of this equipment due to the nature of how the measurement is performed. The CANTY Volume Flow system is a non-contact visual measurement of the product area profile on the end of the conveyor. This area measurement can be combined with the velocity of the belt (separate measurement required) in the operators control system, to provide an accurate volume flow measurement.
You may also like…
VISION BASED VOLUME MEASUREMENT
Eliminate costly maintenance for your belt scales!!! The CantyVision™ Volume Based Measurement System consists of a non-contact Ethernet camera that constantly analyzes product profile on a conveyor belt to produce an integrated volume with no maintenance required.
INDUSTRIAL SOLIDSIZER™ PARTICLE ANALYSIS SYSTEM
50 um – 2,400 um Particle size analysis range. This system is designed for on-line use to determine particle size, shape and distribution, thereby eliminating the need for sieve analysis.
Related ASTM Standards:
• D8200 – Standard Practice for Creating a Correlation to Compare Particle Size Distribution Results of Proppants by Dynamic Imaging Analysis and Sieves. (D18.26)
• D8392 – Standard Practice for Calibration and Verification of Direct Imaging Analyzers Used for Particle Size and Shape Analysis of Catalytic Materials (D32.02)
• E2589 – Terminology Relating to Non-Sieving Methods of Powder Characterization. (E29.02)
Related ISO Standards:
• 9276-6 Representation of results of particle size analysis – Part 6: Descriptive and quantitative representation of particle shape and morphology.
Canty participates in the referenced ASTM subcommittees (D18.26, D32.02 and E29.02) in order to develop useful standards for imaging analyzers. Although the referenced standards are often particular to a type of particle, they can be generalized for use with many types of particles.
ISO9276-6 is widely used to describe shape parameters and provide corresponding formulae for calculation of values.
