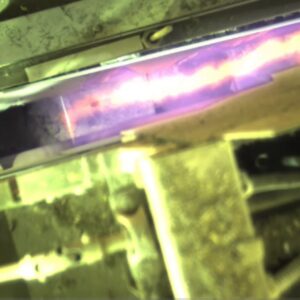

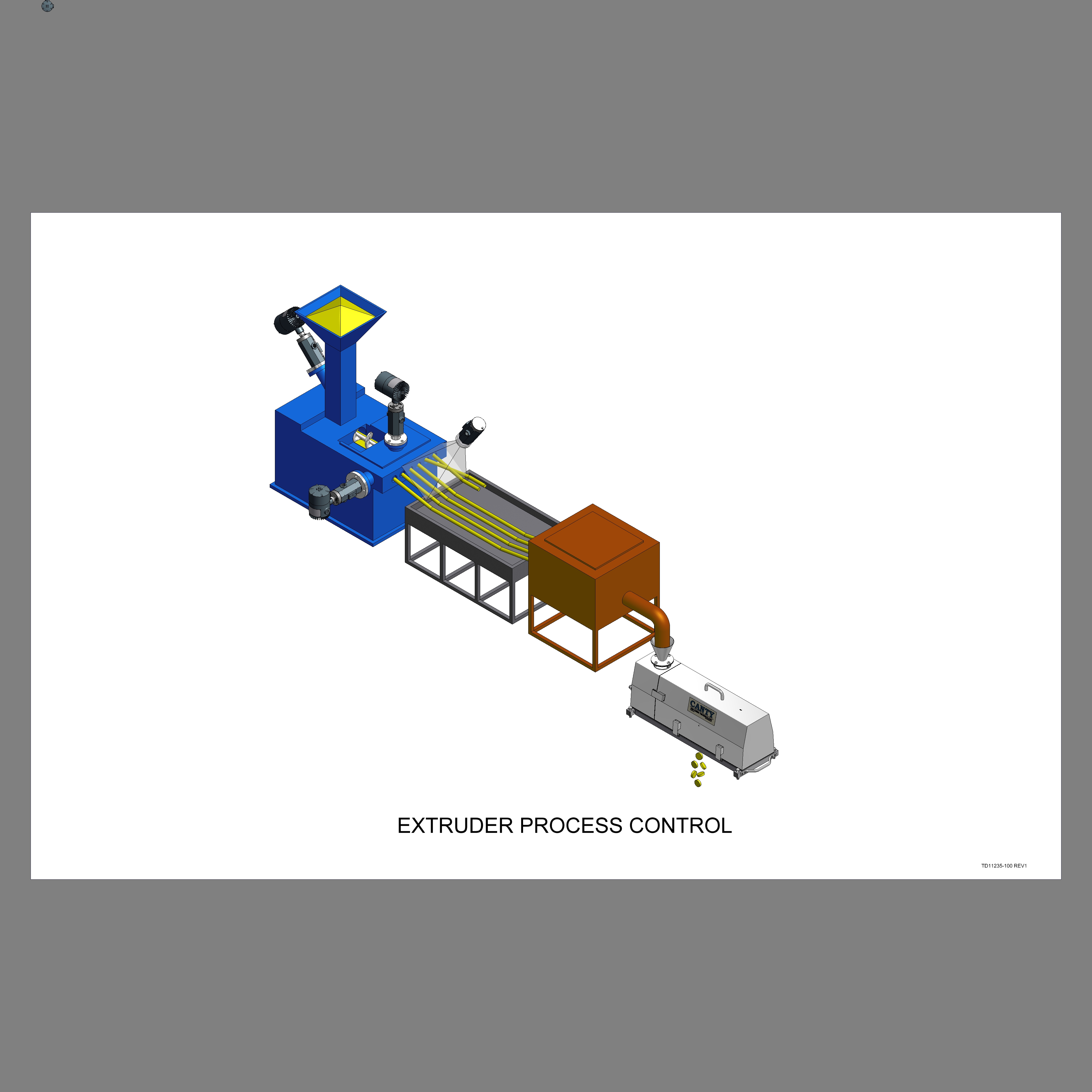

The CANTY extruder vision system allows users to view inside the melt chamber of an extruder at pressures of 5000 psi and temperatures of 600 ºF (300 ºC). This provides a microscopic view of the polymer melt to detect gels, black specks and other impurities in the polymer stream. Strand break is easily detected. The key to the system is the CANTY fused glass. This provides a true high pressure hermetic seal which is flush and allows the polymer to flow over it as opposed to the typical window which would be recessed and gasketed, which causes a vortex shedding, cold spot and eventual plugging. In addition the use of our relaying optical system we keep the electronics in a cool area while avoiding cooling the insertion lens system which needs to be keep at the same temperature as the polymer to avoid coating over of the lens. This advanced system and the CANTY imaging software allow for a reliable system that views the polymer steam and can be programmed to detect and count imperfections.
You may also like…

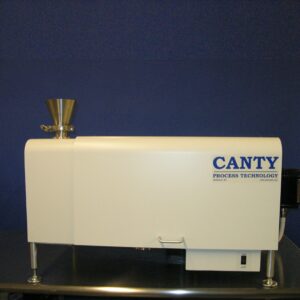

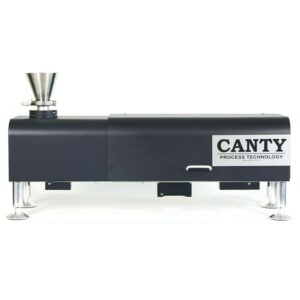

INDUSTRIAL SOLIDSIZER™ PARTICLE ANALYSIS SYSTEM
50 um – 2,400 um Particle size analysis range. This system is designed for on-line use to determine particle size, shape and distribution, thereby eliminating the need for sieve analysis.
Related ASTM Standards:
• D8200 – Standard Practice for Creating a Correlation to Compare Particle Size Distribution Results of Proppants by Dynamic Imaging Analysis and Sieves. (D18.26)
• D8392 – Standard Practice for Calibration and Verification of Direct Imaging Analyzers Used for Particle Size and Shape Analysis of Catalytic Materials (D32.02)
• E2589 – Terminology Relating to Non-Sieving Methods of Powder Characterization. (E29.02)
Related ISO Standards:
• 9276-6 Representation of results of particle size analysis – Part 6: Descriptive and quantitative representation of particle shape and morphology.
Canty participates in the referenced ASTM subcommittees (D18.26, D32.02 and E29.02) in order to develop useful standards for imaging analyzers. Although the referenced standards are often particular to a type of particle, they can be generalized for use with many types of particles.
ISO9276-6 is widely used to describe shape parameters and provide corresponding formulae for calculation of values.
