FLOAT GLASS WIDTH MEASUREMENTS SYSTEM

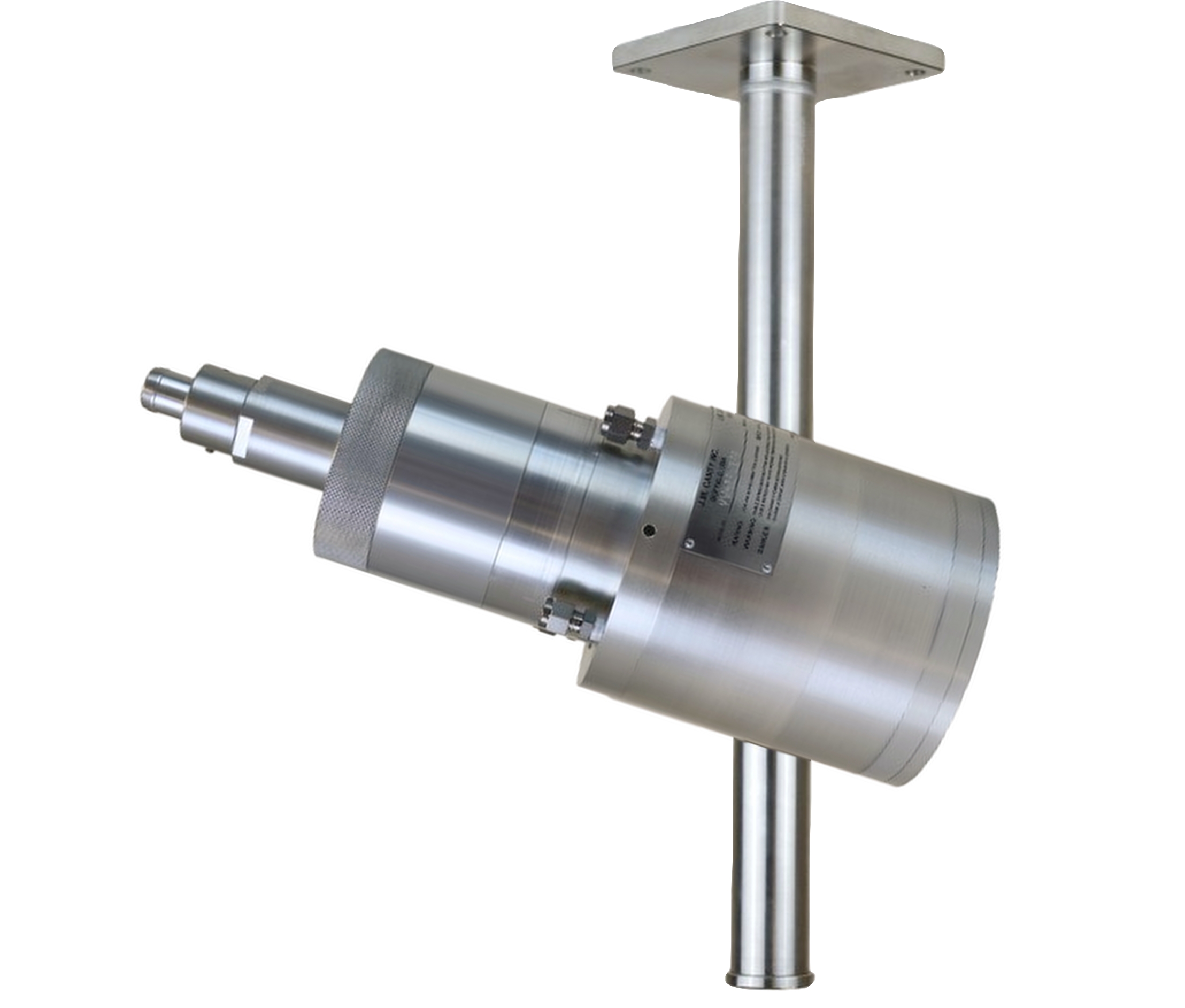

Two high resolution GigE (gigabit ethernet vision) cameras enclosed in an IP67 temperature resistant full metal/jacketed housing cooled by either water or air. A unique orifice plate prevents debris from adhering to the lens, resulting in a clear view of the glass edge and ribbon at all times. Cameras come with a fully adjustable mounting system to allow for optimal camera positioning. Camera can be powered via PoE (power over ethernet) through a direct connection back to a Vector Control Module (embedded image processing system) with variable outputs for system control (analog, Modbus, OPC etc.)
- Non-contact continuous gross/net width control measurement
- Accurately detect both the leading edge of the glass and the knurl
- Resolution of up to .01 inches
- POE or 120/230V options
