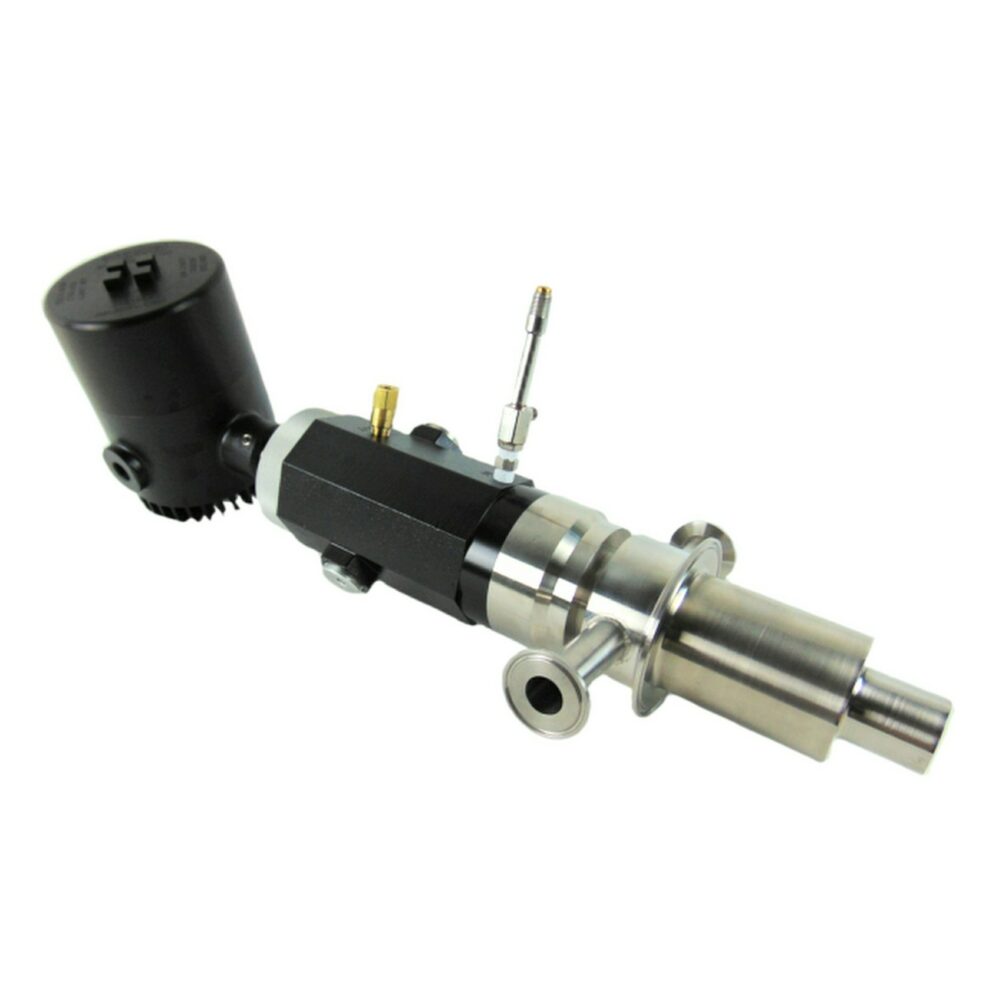

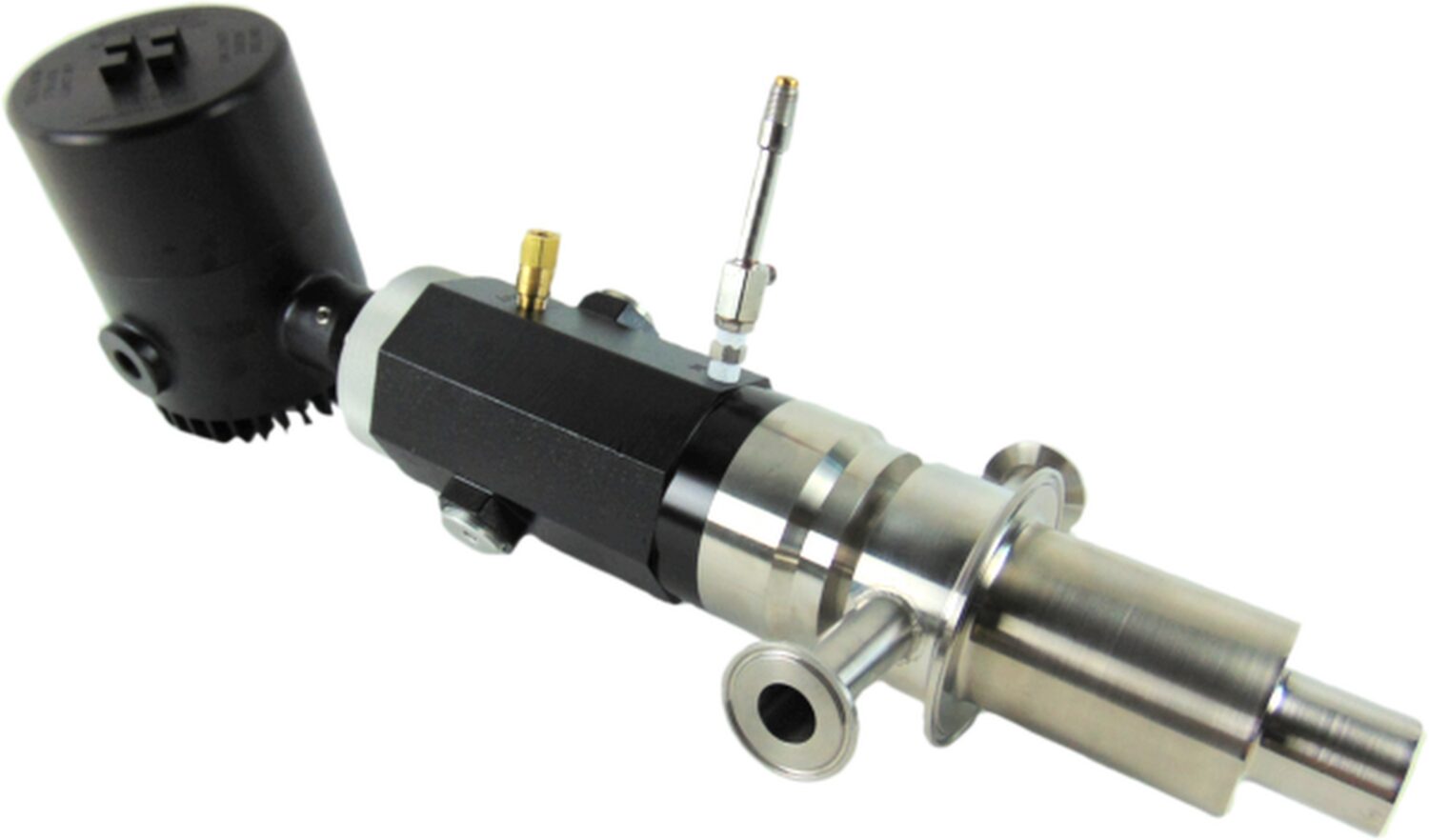

CANTY Spray Dryer Monitoring Systems are vision based, industrial camera / light combinations used to view spray nozzle patterns in real time. This allows operators to see changes in the profile of the spray pattern, and detect clogging before it becomes a problem. Operators can easily view for product build-up before there is a chance for fire. This Vision System can be automated by the CANTY Vector™ Image Processor to measure the size and shape of the spray pattern profile. 4-2mA or OPC alarms can then be sent to the control system if nozzles clog or the spray pattern changes.
1) 4″ SANITARY SPRAY DRYER TYPICAL INSTALLATION DETAIL
2) RIGHT ANGLE SPRAY DRYER CAMERA TYPICAL INSTALLATION DETAIL
