Drilling Mud Particle Size – Lab

Features:

• Lab Particle size down to 1µm

• Analysis of oil or water based mud

• Detect oil / water / solids / gas

Liquid Particle Sizing – Drilling Mud Analysis from JM CANTY on Vimeo.

Product Description

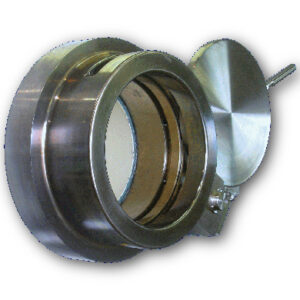

The CANTY DRILLING MUD PARTICLE SIZE ANALYZER System uses a 0- 1/2” variable insertion measurement gap. This insertion is made possible by the Fuseview™ sight glass, which allows the optical fused pieces to be located in the center of the fluid stream, which is unique to the Canty system. The fused glass seal contains no gaskets, ledges, or steps allowing the highest velocity, representative sample and keeps the sensor clean, even in the harshest of environments (crude oil, drilling mud, etc.). The fused glass seal location keeps the sensor in line with the process temperature to avoid product build up due to thermal change. The image processor can be configured with multiple zone sensing on the image of the fluid. The results from the zones can be compared to base line values for reliability and alarm on detection of a problem.

1) DATASHEET
2) PRESENTATION – DRILLING MUD ANALYSIS
3) PRESENTATION – MUD AUTOMATION SYSTEMS
4) PRESENTATION – BRINE (PERCENT SOLIDS & TSS) MEASUREMENT DURING CASING DISPLACEMENTS
5) FIELD REPORT – OFFSHORE DRILLING MUD PSA
